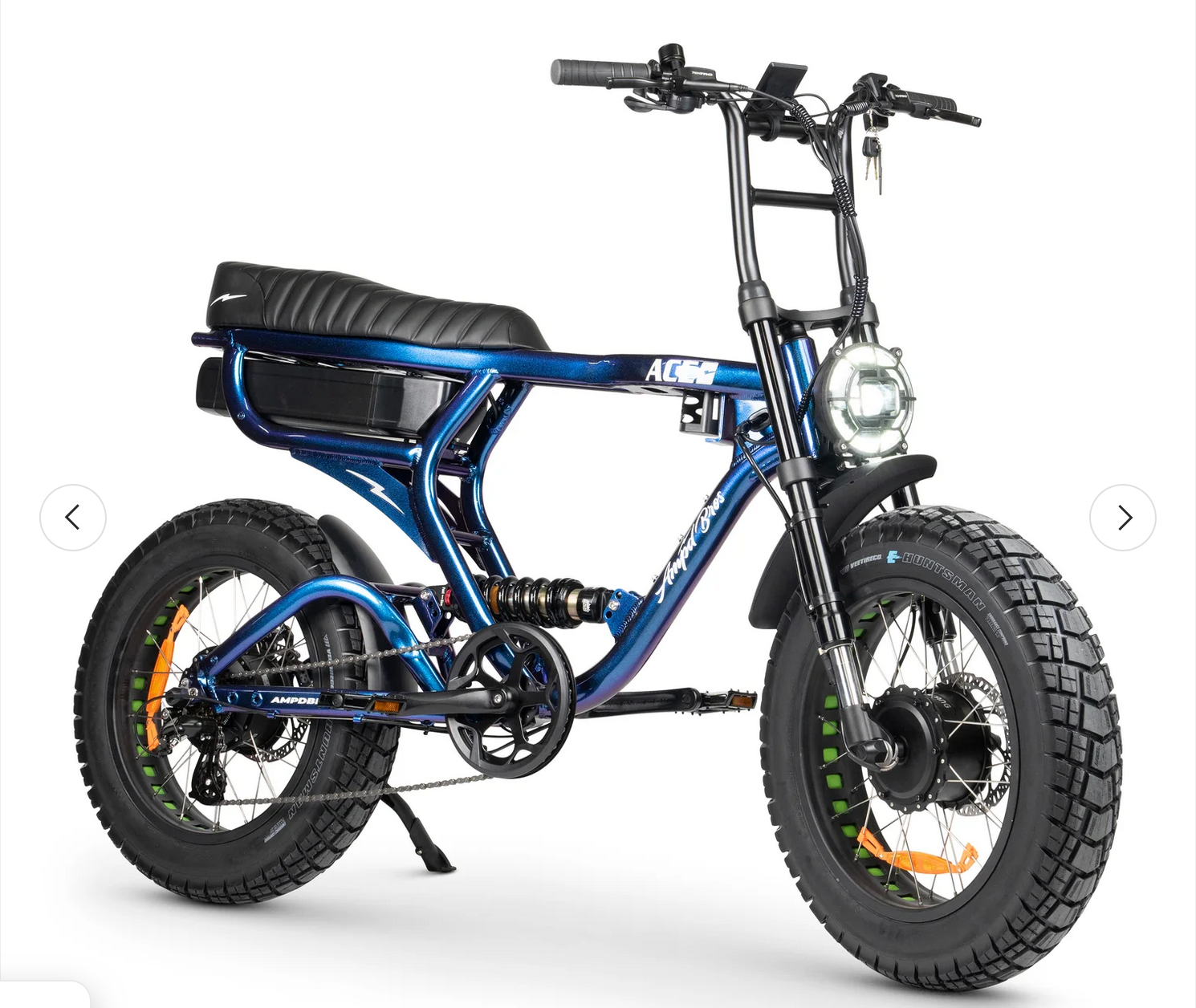

AMPD BROTHERS ACE-X Demon Dual Motor Electric Bike - GALAXY
ABBIK-AXDD-S3-GLX
PLEASE CALL US IF YOU REQUIRE SHIPPING ON THIS PRODUCT - PLEASE NOTE: ADDITIONAL SHIPPING FEES WILL APPLY.
Description
Introducing the all Series 3 - ACE-X DEMON AWD Dual Motor Electric Bike - Get ready for an exhilarating journey! 🚀 Inspired by our renowned ACE-X Model Range, the ACE DEMON is our high-octane marvel loaded with an array of exciting features.
Power and Performance
The ACE Demon AWD Dual Motor Electric Bike is a high-performance powerhouse. Featuring dual 1,000W motors, the Demon delivers a staggering 2,000W of combined power, allowing you to conquer any terrain with ease. With 95Nm (190Nm total) of torque, you’ll effortlessly tackle hills, beaches, and dirt tracks. While it’s limited to 25km/h and 250W the bike can be unlocked for full power, offering an exhilarating off-road experience on private property.
Advanced Suspension and Comfort
Engineered for both comfort and control, the ACE Demon features a dual suspension system that absorbs shocks from rough terrain, ensuring a smooth and enjoyable ride. The redesigned suspension offers 100mm of seat height adjustment, and the plush quilted seat provides extra comfort for long journeys. Whether you’re cruising on pavement or going off-road, the bike’s all-terrain Huntsman puncture-resistant tires keep you riding confidently.
Cutting-Edge Battery Technology
The ACE Demon introduces the latest in battery innovation with our 25Ah GEN3 Aluminium Battery, equipped with 21700 Premium Samsung cells that are 30% larger than standard options, ensuring extended range and optimal performance. The removable battery includes integrated tail and brake lights for added safety. With the new Smart BMS (Battery Management System), you can ride further while maintaining peak efficiency and reliability.
Control and Customization
With its Shimano 7-speed derailleur and rapid-fire trigger shifter, the ACE Demon offers precise control and quick gear changes. The upgraded display allows for seamless navigation of ride modes and motor settings. For an unmatched riding experience, switch between front motor, rear motor, or activate both for all-wheel drive domination. The bike also comes with an optional frame cargo basket for added functionality and convenience.
Premium Features and Design
The ACE Demon stands out with its iconic “X” frame design, spacious two-person seat, and adjustable coffee cup/bottle holder. The 1,000-lumen headlight ensures maximum visibility for night rides, while the new Demon Thunderbolt Special Edition offers a bold, sleek aesthetic. Built with lightweight, rust-resistant aluminium, this bike is designed to withstand demanding conditions while looking sharp.
Explore the ACE Demon today and unlock the thrill of off-road adventure!
Checkout the Range of Options & Accessories for your New ACE Bike or need help customising your bike? Speak to our Friendly Team on what works best for you.
Remember this Electric Bike is exclusively designed for Off Road Private Property Use Only.
ACE PRO & DEMON SERIES 3
Speed & Range
- Range 100km* (Single Motor Only)
- Top Speed 25km/h (or Unlock up to 50km/h for Private Property Use)
Battery
- Standard 48V / 1,200Wh, 25AH
- Samsung Premium 21700 Lithium cells
- Battery is removable and can be charged in bike or separately.
Ride Modes
- Mode 1 Pedal Assist mode: Adjustable pedal assist performance settings from 1-5 or can also be changed to 1-3 or 1-9
- Mode 2 Walk mode: Idles bike up to 6km/h to assist with moving bike by holding the "-" button on the keypad
- Mode 3 Throttle mode: Available when Optioned with the Off Road Throttle Kit
Features
- Hill Ability Up to 30º Degree / 60% Incline PAS
- Seat Custom Large Quilted Plush Dual Seat for 2 Riders
- Warranty 2 Years (1 Year on Batteries)
- Ace Pro Headlight Ampd Bros Signature 800lm LED Light with DRL
- Demon Headlight Upgraded PRO Front LED 1,700lm Headlight with DRL
- Lights Rear LED Brake Light inbuilt to battery pack
- Grips Velo Wide Comfort
- Bell Yes
Brakes
- Standard Tektro Hydraulic Disc
- Discs 180mm
- E-Brakes Yes Motor Safety Cut Off
Display
- Colour LCD Multi-Function with USB, ODO, Trip, Battery Level, Speed etc
Controller
- Ampd Brothers Custom - Best-in-class power density and state-of-the-art motor control algorithms.
Drivetrain
- Motor Type Bafang RMG 062D & 063D Latest Gen Hub Drive
- Ace Pro Motor Single Rear Limited to 250W (Unlocked 1,000W)
- Ace Demon Motors AWD Dual Drive Limited to 250W (Unlock to 1,000W Front & Rear - 2,000W Total)
- Ace Pro Torque High Torque 95n.m
- Ace Demon Torque High Torque 190n.m (Combined)
- Transmission Shimano 7 Speed with Rapid Fire Micro Shifter
- Derailleur Shimano Altus
- Pedals Wellgo Alloy - Black
- Chain KMC Z Series High Performance
Construction
- Frame Aluminium - "X" Step Over Bar Design
- Handlebars Aluminium Motorcycle Inspired with Adjustable Height
- Fenders Matte Black Aluminium
Suspension
- Standard Front Independent & Rear Adjustable DNM
Wheels & Tyres
- 20x4.0" Vee Tire Huntsman Puncture Resistant All Terrain Tyres
Charging
- 8.5hrs for 25Ah Batteries with Standard 3A Included Charger
- Optional 5A Fast Charger Available
Dimensions
- Overall Length 1,800 mm
- Handlebar Height 1,140 - 1,190 mm
- Handlebar Width 660 mm
- Seat Height 880mm (Adjustable between 850-950mm)
- Seat Length 600 mm
- Ground Clearance 270 mm
- Wheel Base 1,160 mm
- Rider Height Ideal for Riders up to 200cm Tall
Weights
- N.W of 25Ah Battery 6.25 kg
- N.W of ACE Pro + Battery 44.4 kg
- N.W of ACE Demon + Battery 49 kg
- Max Loading 150 kg
Inclusions
- In Box Bike, 48V Battery, 3A AUS Charger, Front Headlight, Basic Tool Kit, Manual, Pedals, Fenders, Seat & Kick Stand.
*Range Achievable may vary based on loading, motor use, throttle/pas, terrain, weather conditions and many other factors.
