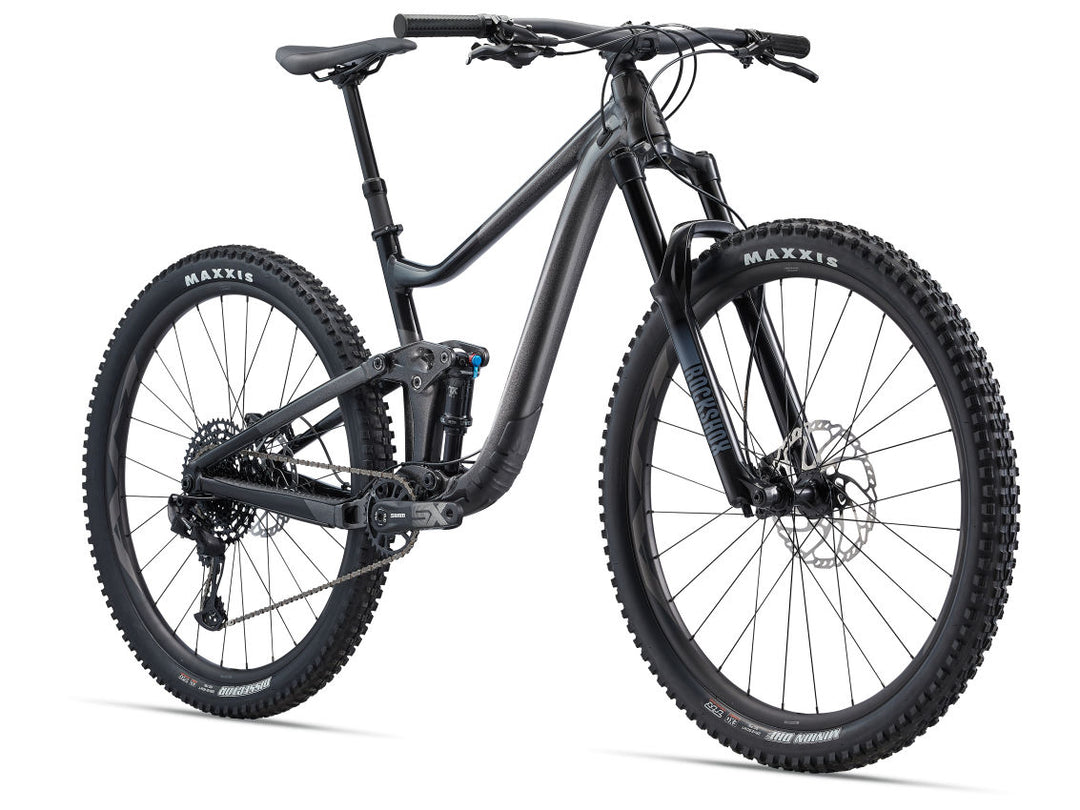

Giant Trance X 29 2 Metallic Black

29er confidence and control

29-inch wheels optimised to roll over technical terrain with balance and stability, giving you more momentum on tricky climbs and confidence to fly on fast singletrack descents. Added clearance for up to 2.5-inch tyres.

Progressive suspension

Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 135mm of full rear-wheel travel (and 150mm up front), it features an Advanced Forged Composite upper rocker arm for increased stiffness and strength plus lower overall frame weight.

Adjustable geometry

A flip chip lets you change the headtube and seattube angles, along with the bottom bracket height, to fine-tune the handling. You can choose the low position (65.5/77.2 head/seattube angle and 40mm BB drop) for fast, open terrain, or high (66.2/77.9 head/seattube angle and 30mm drop) for slower, tighter singletrack.

HIGHLIGHTS

Engineered to help you ride faster and smoother on the toughest trails, this versatile trail bike has a lightweight, strong and stiff aluminum chassis with 29er-specific geometry. Updated Maestro rear suspension delivers 135mm of active rear travel that pairs perfectly with a 150mm fork. The Advanced Forged Composite rocker arm has a flip chip that allows you to adjust frame geometry. Choose steeper or slacker headtube/seattube angles and either a 30mm or 40mm bottom bracket drop to adjust the handling for your riding style and terrain.

• Sizes: S, M, L, XL
• Colours: Metallic Black / Black
• Frame: ALUXX SL-Grade aluminium front and rear triangles, 135mm Maestro suspension, flip chip, 12x148mm thru-axle
• Fork: RockShox 35 Gold RL, 150mm, 44mm offset, 15x110 Maxle Stealth, custom tuned for Giant
• Shock: Fox Float DPS Performance, custom tuned for Giant
• Handlebar: Giant Contact TR35, alloy, 35mm
• Grips: Giant Tactal Pro Single lock-on
• Stem: Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
• Seatpost: Giant Contact Switch dropper, remote
• Saddle: Giant Romero
• Pedals: N/A
• Shifters: SRAM SX Eagle, 1x12
• Front Derailleur: N/A
• Rear Derailleur: SRAM SX Eagle
• Brakes: Shimano Deore BR-MT420, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm
• Brake Levers: Shimano Deore BL-MT401
• Cassette: SRAM SX, 11x50
• Chain: SRAM SX Eagle
• Crankset: SRAM SX, 30t S:165mm, M:170mm, L:170mm, XL:170mm
• Bottom Bracket: SRAM DUB, press fit
• Rims: Giant AM 29, alloy
• Hubs: Alloy, sealed bearing
• Spokes: Sapim
• Tires: [F] Maxxis Minion DHF 29x2.5 WT, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 TPI, 3C Max Terra, EXO, TR
• Extras: Tubeless prepared, 2.5" max tyre size, 34t max chainring size
• Weight: The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
